Project 2: Balanced Symbol Checker

Background Info

Write a C program that will determine whether input is given with properly balanced symbols. We will often use symbols together to specify the beginning and ending of an item, such as the use of parentheses in a mathematic expression or the use of curly braces in a C, C++ or Java program. For this program, we will be checking the following symbol pairs:

Project Guide

A stack will be used to implement the program.

The push operation is defined as follows:

if (the stack array if full)
  grow the array
add the value to the stack array
increment the top-of-stack value

The grow operation is defined as follows:

Allocate a new dynamic array of the larger size
Copy the existing values from the current stack array to the new dynamic array
Deallocate the current stack array
Have the stack array variable refer/point to the new dynamic array
Update the maximum stack size variable

Stack Usage Algorithm

To check for balance symbols in an expression, the expression is inspected from left to right after the entire line is read in.

When an opening symbol is encountered, this symbol is pushed onto the stack. The opening symbols are: ( { [ and <.

When a closing symbol is encountered, check the symbol at the top of the stack.

When the end of the expression is encountered (i.e. the end of the input line), check to see if the stack is empty

Since the only input we really care about are the 8 characters that form the 4 symbol pairs and determining when the “end of the expression” is reached, any other input on the line can be ignored.

Use of C struct and C functions

When writing your code, you MUST place all of the data items needed for the stack in a C struct called stack. These data items must include the following (and may include others if needed).

The instance of this struct MUST be declared locally in main(). It may NOT be global.

Note: If you want it to be declared locally in some other function other than main(), that is also OK.

You MUST write functions for:

All of these functions MUST take as their first parameter a pointer to the struct that contains the instance of the stack that is being used.

Command Line Argument: Debug Mode

Your program is to be able to take one optional command line argument, the -d flag. When this flag is given, your program is to run in “debug” mode. When in this mode, your program is to display a message whenever an item is pushed or popped from the stack. This message must include the character being pushed or popped. Also, when the stack grows, you are to explicitly state the old and new size of the dynamic array as well as indicate the number of values copies from the current to the new dynamic array.

When the flag is not given, this debugging information should not be displayed. One simple way to set up a “debugging” mode is to use a boolean variable which is set to true when debugging mode is turned on but false otherwise. This debugging mode variable can be set up as a global variable if desired. Then using a simple if statement controls whether information should be output or not.

  if ( debugMode == TRUE )
      printf (" Debugging Information \n");

Input

The input for this program will come from standard input. Each line of input will be a single expression that is to be checked for balanced symbols. You may assume that each line of input is less than 300 characters long.

Since we have limited the length of the input and are trying to process one line of input at a time, the best way to read the input is the fgets() function in the <stdio.h> library. Since we are reading from standard input, you are to use the value of stdin for the third parameter of fgets(). This causes fgets() to read input from the standard input. You MUST use fgets() for this programming project to read in the input.

If the input on the line contains only the letter q or Q, quit the program.

Output

For each line of input, your program should display the input and specify whether the expression

For the unbalanced expression, print the “up arrow” character at the place where the unbalanced error occurred. The following are some examples output showing the 4 possible outcomes:

( ( a a ) < > [ [ [ { [ x ] } ]]] <>)
Expression is balanced

( ( a a ) < > [ [ [ { [ x ] ]]] <>)
                            ^ expecting }

( ( a a ) ) < > > [ [ [ { [ x ] } ]]] <>)
                ^ missing <

( ( a a ) < > [ [ [ { [ x ] } ]]]
                                  ^ missing )

Project Structure

No extra resources provided.

Restrictions for this Project

This program will require the use of a stack implemented in a dynamic array. This dynamic array is to grow to a larger size when a push operation would be done to a full array causing an array overflow. For this program, your dynamic array MUST start with 2 positions in the array. When the array needs to grow, it size MUST grow by 2 additional positions each time (note the array to grow in size from 2 to 4 to 6 to 8 to 10 to …).

My Solution in Action

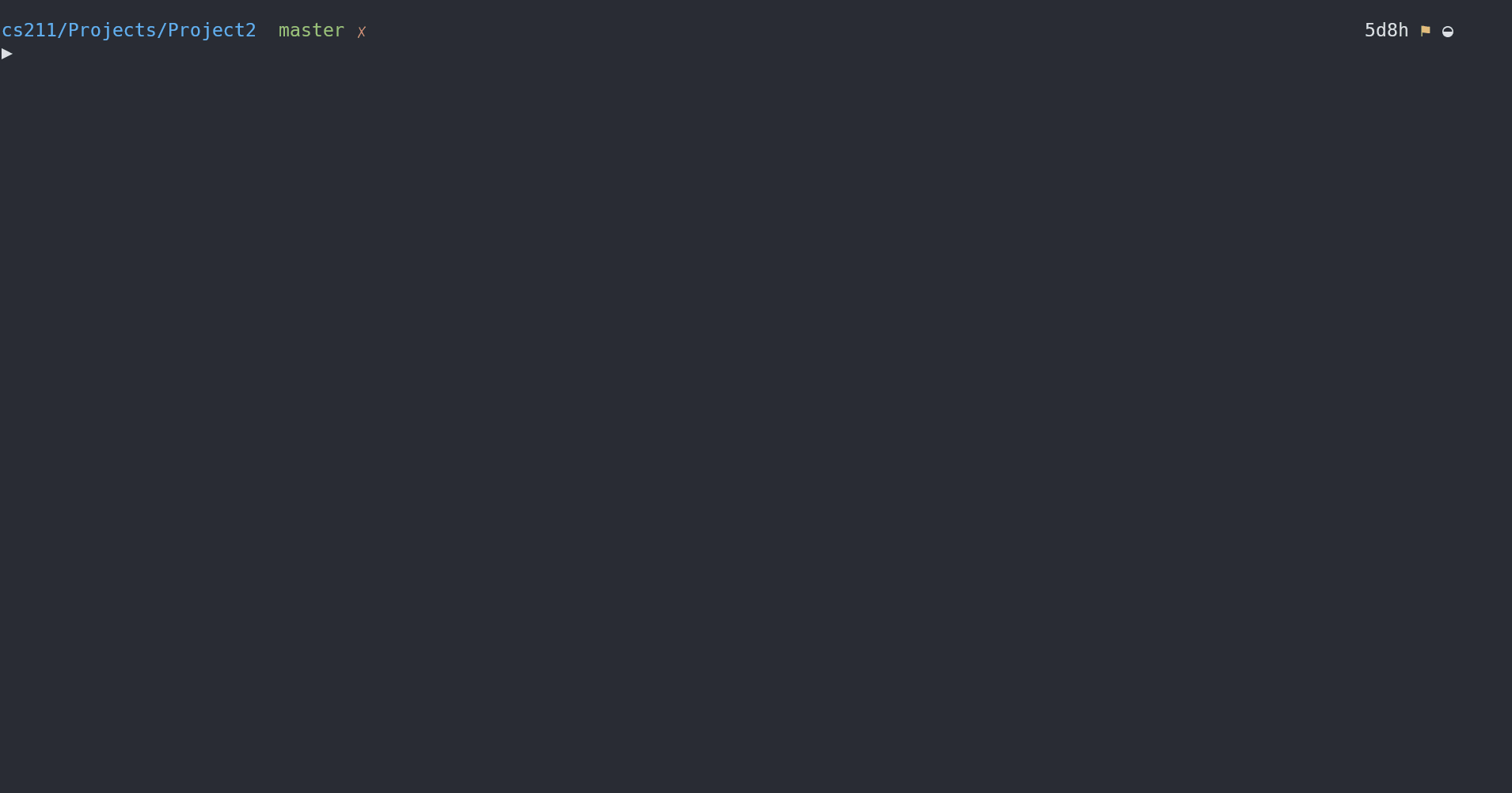

Project 2 in Action!

I have a Makefile for quicker compilation, and then we run the executable (v1). Makefile is written to support general compilation of most .c files, so I will reuse it throughout projects, making updates to it ocassionally.
